|Place of Origin:||Suzhou, China|
|Model Number:||UNS R30188|
|Minimum Order Quantity:||100kg|
|Price:||Available per request|
|Packaging Details:||Per customer requirement|
|Delivery Time:||30 days|
|Supply Ability:||5000kg per week|
Haynes* 188(UNS R30188)
Haynes 188 is a cobalt-based alloy which possesses a unique combination of properties. It has excellent high temperature strength and oxidation resistance to 2100°F (1150°C) combined with good post-aging ductility.
Haynes 188 has average room temperature tensile properties in the bright annealed condition of 137.2 ksi (946 MPa) ultimate strength, 67.3 ksi (464 MPa) yield strength and 53% elongation. At 1800°F (980°C) the alloy has ultimate and yield strengths of 35.2 ksi (243 MPa) and 19.0 ksi (131 MPa), respectively, with 59% elongation. Cryogenic temperatures do not significantly affect the ductility of alloy 188, but strength levels are increased markedly.
The excellent oxidation resistance of Haynes 188 results from minute additions of lanthanum, which modifies the protective oxide scale in such a manner that the oxide becomes extremely tenacious and retards diffusion when exposed to temperatures through 2100°F (1150°C).
Haynes 188 exhibits good ductility after prolonged exposure at temperatures of 1200, 1400, and 1600°F (650, 760 and 870°C) for 16,000 hours.
Because of its excellent strength, ductility and oxidation resistance, Haynes 188 meets the critical high-temperature material requirements for gas turbine applications as well as many of those in the airframe, chemical and nuclear fields. Typical uses are as transition ducts, combustor cans, spray bars, flame-holders and afterburner liners in jet engines.
UNS R30188, GH5188(China), KCN22W(France), Alloy188
Manganese 1.25 max
Boron --0.015 max
Iron --3.0 max
AMS 5608, AMS 5772,
Forms of product available at A-one Alloy

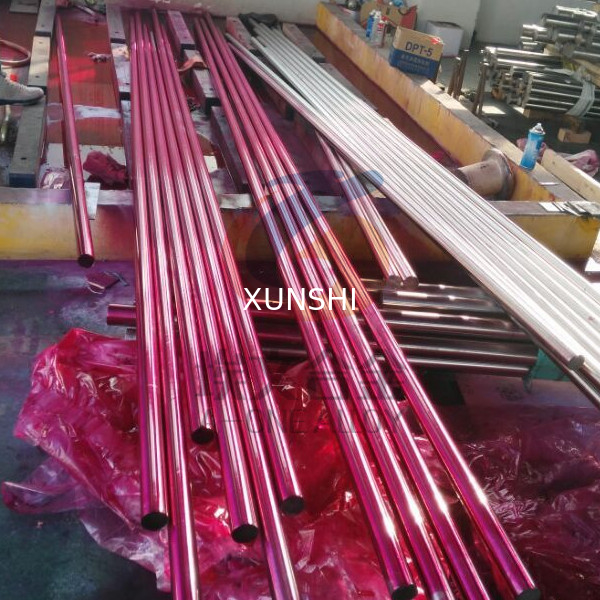

Plate, sheet, strip, rod, bar, forging. ring
Available on request
*Haynes is a registered trademark of Haynes International, Inc.
About A-ONE Alloy
Suzhou A-one Special Alloy Co. Ltd- referred as A-ONE Alloy hereafter, is a professional manufacturer of high performance alloy products. A-ONE Alloy is engaged in supplying high quality and cost effective Superalloy, Anti-Corrosion Alloy, Precision Alloy, Special Stainless Steel and Magnetostrictive Material to customers from worldwide.
Why A-ONE Alloy
· Rich experience in alloy industry
· Top rank experts of industry in China
· Advanced technology and process from top famous institutes in China
· Advanced devices through whole production and inspection process
· Strict quality control system
· Company motto: best service, most value
· Smart sales policy
A-ONE Alloy Service Items
· Non-standard product research and pre-production
· Fabrication of products
· Cutting, splitting for sheets and plates in stock
· Heat treatment(Solution treatment, aging harden treatment, anneal, spring temper, quench etc.)
· Surface finish(peeling, gridding)
· Logistics service
· Customized packing service(also for exporting)
· Import and export(A-ONE Alloy is certificated)
· Document translation
· Hard-to-find material sourcing
Customers of A-ONE Alloy
Customers of A-one Alloy are all over China (Taiwan and Hong Kong included). And we are exporting to USA, Canada, Italy, UK, Poland, Greece, Russia, Turkey, Iran, Israel, South Africa, South Korea, North Korea, India, Argentina, and Brazil and so on. Customers from 30+ countries trust us.
Where is A-ONE Alloy
A- A-ONE Alloy is located in No.2 Weihua Road, Suzhou Industrial Park, Jiangsu Province, China
B- ONE Alloy is around 130KM from Shanghai Pudong International Airport(PVG).
C- 13KM from Suzhou Railway Station
D- 7KM from Yangchenghu Station, Jinghu(G2) Highway
E- You can contact A-ONE Alloy sales for a pickup service
