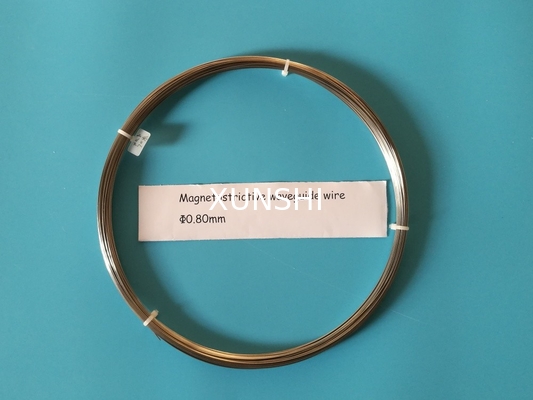

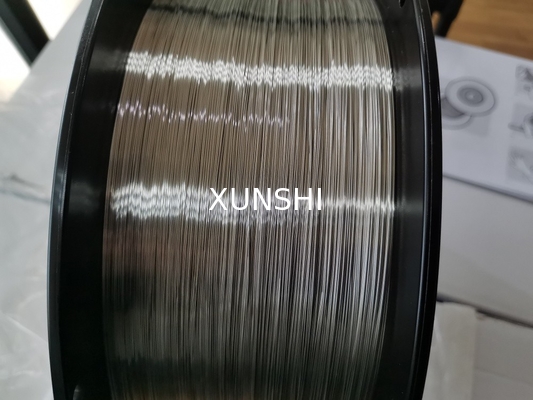

Magnetostrictivewaveguide wire used for magnetostrictive sensor

Magnetostrictivewaveguide wire used for magnetostrictive sensor

    • Magnetostrictivewaveguide wire used for magnetostrictive sensor
    • Magnetostrictivewaveguide wire used for magnetostrictive sensor
  • Magnetostrictivewaveguide wire used for magnetostrictive sensor

    Product Details:

    Place of Origin: Suzhou, China
    Brand Name: AIWEN
    Certification: ISO, TUV, , BV, DNV
    Model Number: Magnetostrictivewaveguide wire-Avril

    Payment & Shipping Terms:

    Minimum Order Quantity: 100meter
    Price: USD1.29/meter
    Packaging Details: By coil or poil
    Delivery Time: 1days
    Payment Terms: 30% T/T in advance, balance before shipment
    Supply Ability: 100kg/month
    Contact Now
    Detailed Product Description
    Type: Soft Shape: Coil
    Application: Industrial Magnet Composite: FeNi

    Magnetostrictivewaveguide wire

    Introduction

    A-one Alloy has  rich experience of supplying Magnetostrictive waveguide wire to customers  from worldwide. Our wire is widely used in Magnetostrictive level gauge/sensor.  We keep regular stock of wire of diameter 0.35mm/0.50mm/0.75mm/1.0mm/1.2mm.  Contact Allen Sun at allen.sun@sz-alloy.com  for latest stock information.

    Magnetostriction is a property of  ferromagnetic materials such as iron, nickel, and cobalt. When placed in a  magnetic field, these materials change size and/or shape.

    An important characteristic of a wire  made of a magnetostrictive material is the Wiedemann effect. When an axial  magnetic field is applied to a magnetostrictive wire, and a current is passed  through the wire, a twisting occurs at the location of the axial magnetic  field. The twisting is caused by interaction of the axial magnetic field,  usually from a permanent magnet, with the magnetic field along the  magnetostrictive wire, which is present due to the current in the wire.

    The current is applied as a  short-duration pulse, -1 or 2 µs; the minimum current density is along the  center of the wire and the maximum at the wire surface. This is due to the  skin effect.

    The magnetic field intensity is also  greatest at the wire surface. This aids in developing the waveguide twist. Since  the current is applied as a pulse, the mechanical twisting travels in the  wire as an ultrasonic wave. The magnetostrictive wire is therefore called the  waveguide.

    Character

    λ//: 28ppm;

    λs:≈30ppm

    Density:8.0g/cm3

    Linear Expansion coefficient: 8.5ppm/K  (@20-100°C)

    Resistivity: 1.1μΩ·m

    Tensile strength: >930MPa

    Working temperature: -40~100°C

    Elasticity modulus: 170~190Gpa

    Shear modulus: 60~65GPa

    Application

    Magnetostrictive level gauge, Magnetostrictive  sensor,

    Sizes available  at A-one Alloy

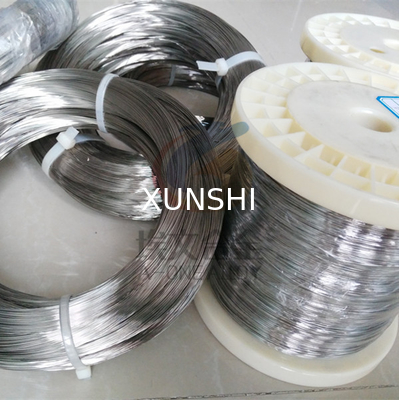

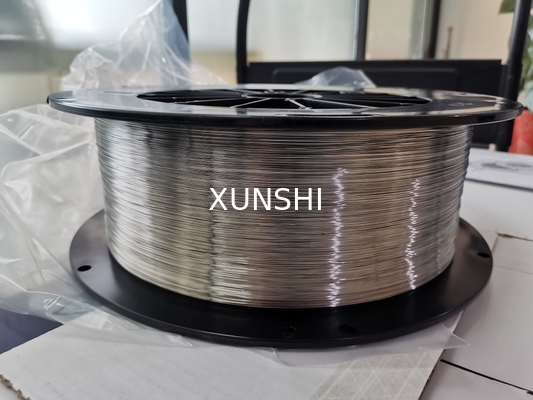

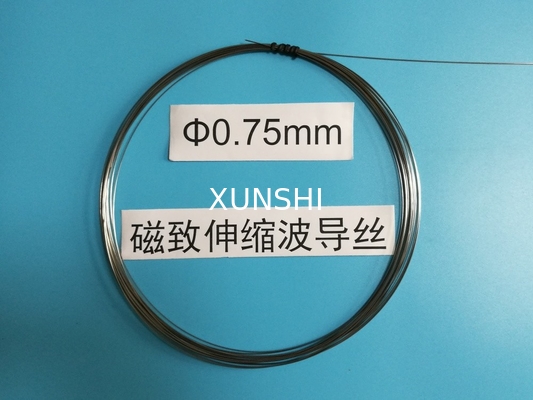

    Diameter 0.20~1.5mm. Stock size:  diameter 0.35mm/0.50mm/0.75mm/1.0mm/1.2mm. In reel or coil.

    Delivery

    Stock items: within 3 days after  payment received. For customized diameter, the delivery is 30 days.

    Magnetostrictivewaveguide wire used for magnetostrictive sensor
