316LVM capillary for body implants cardiovascular stent UNS S316LVM

316LVM capillary for body implants cardiovascular stent UNS S316LVM

316LVM capillary for body implants cardiovascular stent UNS S316LVM

Product Details:

Place of Origin: Suzhou, China
Brand Name: AIWEN
Certification: ISO
Model Number: UNS S31673

Payment & Shipping Terms:

Minimum Order Quantity: 1kg
Price: Available per request
Packaging Details: Per customer requirement
Delivery Time: 45 days
Payment Terms: T/T
Supply Ability: 1000 KG per month
Contact Now
Detailed Product Description

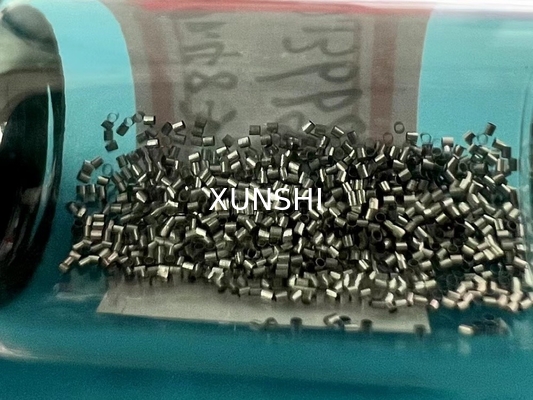

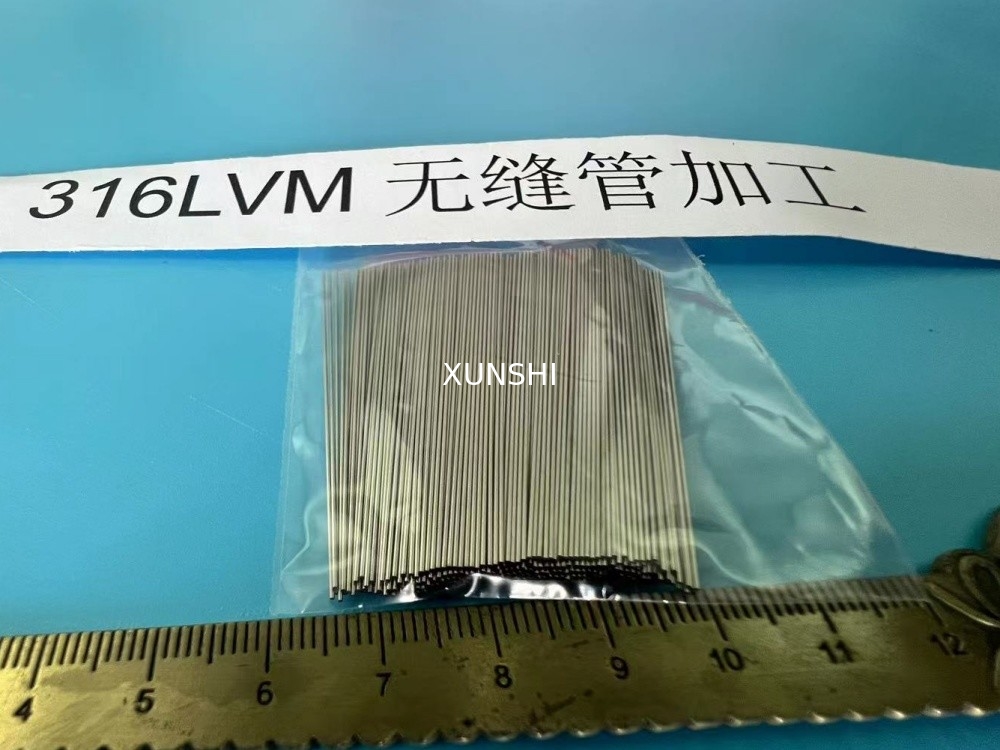

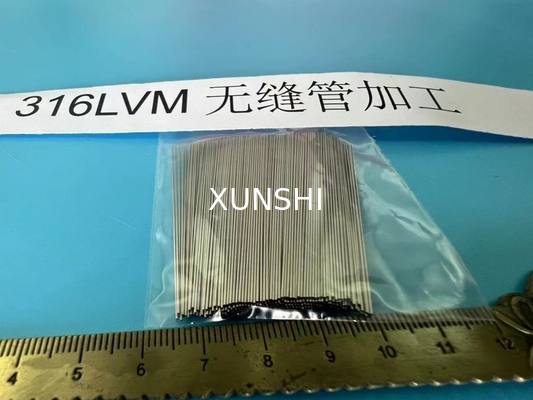

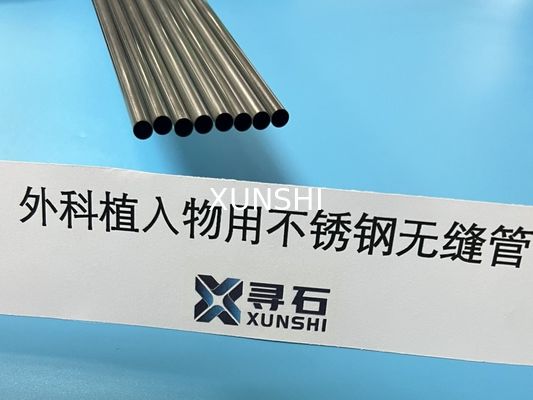

The 316LVM stainless steel seamless tube(capillary) is used in involving medical as cardiovascular stent.


316LVM (UNS S31673)


316LVM is a molybdenum-alloyed vacuum arc-remelted(VAR) stainless steel for the production of both temporary and permanent implants. It is also introduced into body piercing jewelry such as nose ring, eyebrow ring, and belly button ring and so on.

Characters of 316LVM

l   High strength

l   High fatigue strength

l   Excellent micro cleanliness

l   Excellent structural homogeneity

l   High surface finish


l   Temporary and permanent implants

l   Body piercing jewelry

Equal grades:

316LVM, ASTM F138, 00Cr18Ni14Mo3, DIN X 2 CrNiMo 18 15 3

Chemical composition (%):

C≤0.030, Mn≤2.00, Si≤0.75, P≤0.025, S≤0.010, N≤0.10, Cu≤0.50, Ni=13~15, Cr=17.0~19.0, Mo=2.25~3.00, Fe=reminder


l   GB 4234-2003

l   Bar and wire: ASTM F138

l   ISO 5832-1

l   BS ISO 5832-1 (replaces BS 7252-1)

Product range:

l   Cold drawn bar:Φ0.6~25mm,tolerance:±0.01~±0.1mm;

l   High precision cold drawn bright bar:Φ0.6~20mm,tolerance:H7~H9;

l   Hot rolled bar:Φ14~75mm,tolerance:±0.15~±0.30mm;

l   Cold rolled plate:Φ1.0~6.5mm,tolerance:-0.15mm,+0.1~0.25mm;

l   Cold drawn wire(solution treated):Φ0.4~1.2mm,tolerance:±0.01~±0.02mm.

Other products available per request.


Plenty of cold drawn bars in stock from diameter 0.8mm to diameter 10mm. For orders the delivery is 3 weeks.
