Terfenol-D Rare Earth Giant Magnetostrictive Alloy Bar

Terfenol-D Rare Earth Giant Magnetostrictive Alloy Bar

    • Terfenol-D Rare Earth Giant Magnetostrictive Alloy Bar
    • Terfenol-D Rare Earth Giant Magnetostrictive Alloy Bar
    • Terfenol-D Rare Earth Giant Magnetostrictive Alloy Bar
    • Terfenol-D Rare Earth Giant Magnetostrictive Alloy Bar
    • Terfenol-D Rare Earth Giant Magnetostrictive Alloy Bar
  • Terfenol-D Rare Earth Giant Magnetostrictive Alloy Bar

    Product Details:

    Place of Origin: Suzhou, China
    Brand Name: XUNSHI
    Certification: ISO 9001:2015
    Model Number: GMM-Terfenol-D

    Payment & Shipping Terms:

    Minimum Order Quantity: 100g
    Price: USD 10-20/g
    Packaging Details: Carton or per customer requirement
    Delivery Time: 30 days
    Payment Terms: T/T
    Supply Ability: 100kg per month
    Contact Now
    Detailed Product Description
    Content(percent): As Agreed Application: Various Applications
    Grade: Terfenol-D Composition: Dysprosium
    Product Type: Rare Earth Alloy

    Terfenol-D
    Introduction:
    XUNSHI has rich experience of supplying various Terfenol-D products.
    Terfenol-D has the largest room temperature  magnetostriction of any known material. The name Terfenol originated from the  metallic elements, Terbium (TER) and Iron (FE); and the discovering  organization, Naval Ordnance Laboratory (NOL). Dysprosium (-D) was added as  an alloying addition later to reduce the magnetic fields required to induce  the magnetostrictive response. NOL, now known as the Naval Surface Warfare  Center – Carderock Division (NSWCCD) developed Terfenol-D for high power  sonar offering greater bandwidth and reliability over legacy technologies.  ETREMA holds key patents and licenses for many Terfenol-D applications,  including exclusive worldwide licenses to manufacture several types of  Terfenol-D materials. ETREMA is the world’s leading supplier of Terfenol-D  materials and products. Additionally, ETREMA provides assistance with the  design and manufacturing of Terfenol-D driven products.

    Characters
    Terfenol-D is an alloy comprised of Terbium, Dysprosium  and Iron. Terfenol-D is a solid-state material capable of converting energy  from one form to another. In the case of electrical-to-mechanical conversion,  the magnetostriction of the Terfenol-D generates strains 100 times greater  than traditional magnetostrictives, and 2-5 times greater than traditional  piezoceramics. The material has a high Curie temperature (380°C), which  enables magnetostrictive performance greater than 1000 ppm from room  temperature to 200°C. Adjustments in alloy composition can extend this range  down to cryogenic temperatures.

    Application:
    As a material with multiple functions, it can be used  in many different fields. Till now, more than 1000 kinds of different device  have been developed, covering the fields of machine tool industry, electronic  industry, oil industry, textile industry, aircraft and aerospace, agriculture  as well as civil use. All these development do active advances in the  regarding industry areas. For example, the use of the high power GMM  transducer to treat the oil well reduces the viscosity of oil therefore  increases the output of the oil greatly.

    Available  forms and sizes:

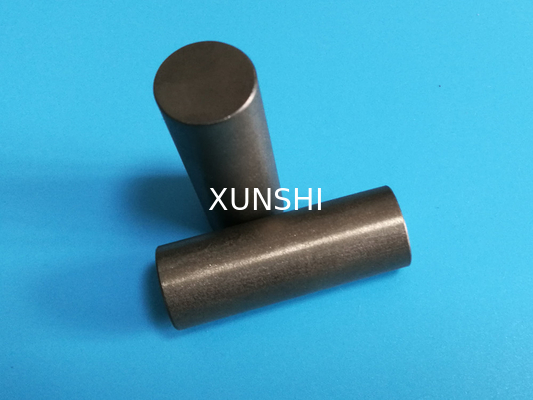

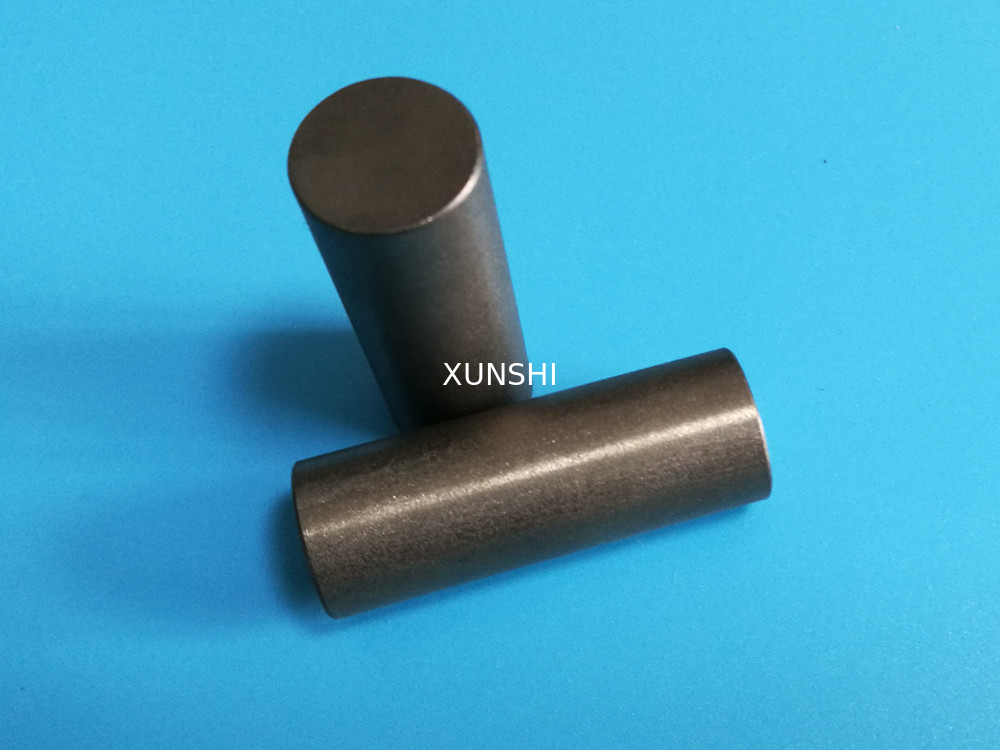

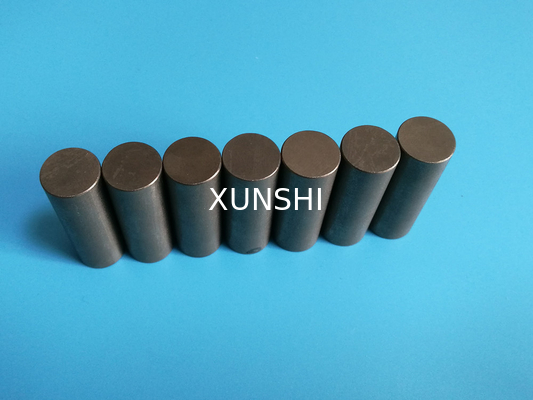

    Round bar, diameter 4~50mm, length below 200mm

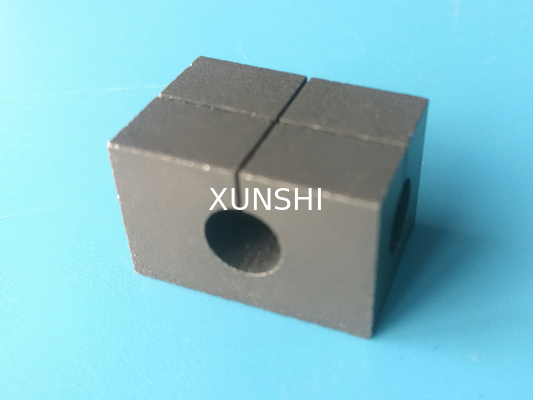

    Square bar: width 2~35mm, length 2~100mm

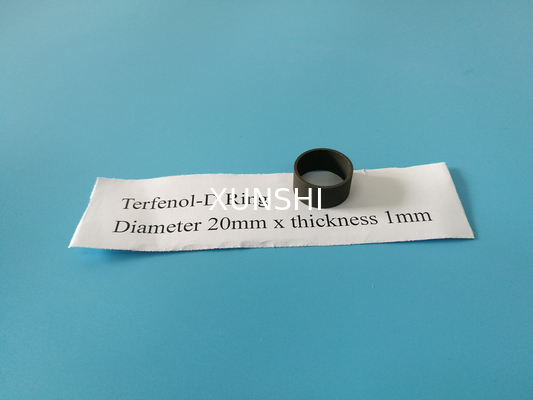

    Ring: diameter 8~50mm, thickness 2~4mm, height 2~100mm
    Round plate: diameter 4~50mm, thickness≥1mm
    Square plate: thickness≥1mm

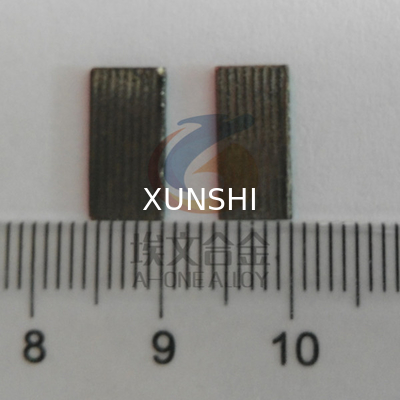

    Laminated round plates: diameter 10~50mm,  length 5~100mm, min. laminated thickness 2mm
    Powder: available per request
    Terfenol-D Rare Earth Giant Magnetostrictive Alloy Bar

    Terfenol-D Rare Earth Giant Magnetostrictive Alloy BarTerfenol-D Rare Earth Giant Magnetostrictive Alloy Bar
    Terfenol-D Rare Earth Giant Magnetostrictive Alloy Bar
