ASTM A801 Standard Specification for Wrought Iron-Cobalt High Magnetic Saturation Alloys (UNS R30005 and K92650)
VACOFLUX 50 has the highest magnetic saturation of all soft-magnetic alloys and excels in application where this attribute is needed. Hiperco 50 maintains its strength after heat treating making it your best choice for application that experience high forces (e.g. rotating parts).
Typical composition
C=0.010, Mn=0.05, Si=0.05, Co=48.75, Nb=0.05, V=1.90, Fe=remainder
Equal grades:
1J22(China), UNS R30005, Permendur, Supermendur
Characters
- Highest magnetic saturation in all soft magnetic alloys
- High Curie point-980°C
- High magnetostriction
Applications
- Special motors for the aerospace industry
- Electromagnets for medical applications
- Electrical generators
- Specialty transformers
- Pole pieces for electromagnets
- Magnetic bearings
- High magnetic flux devices and instruments
Forms of supply

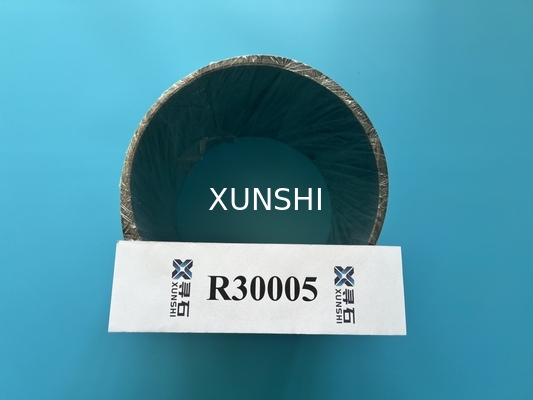

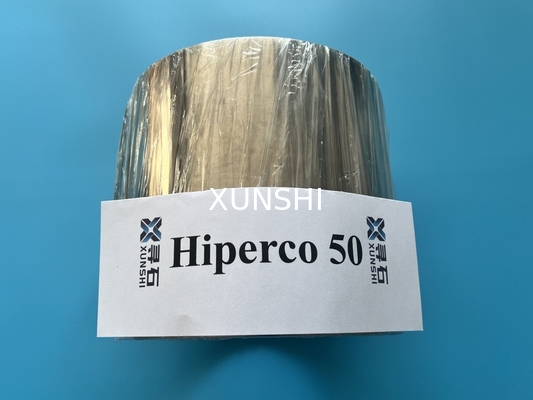

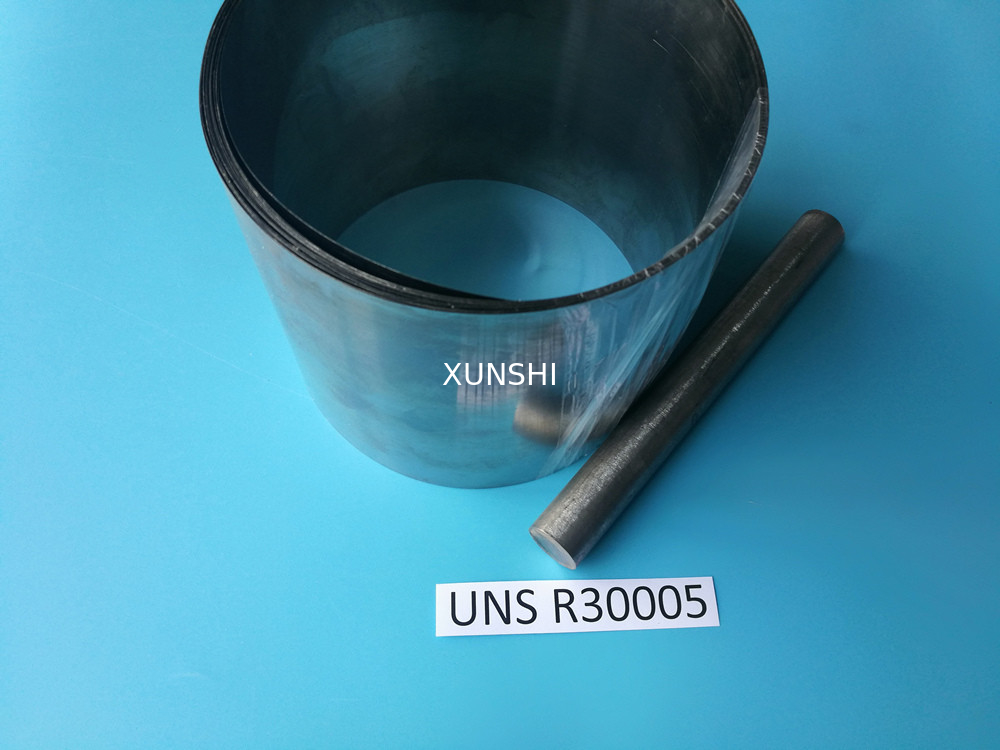

- Cold rolled strip-- stock thickness 0.1mm, 0.20mm, 0.35mm
- Hot forged round bar
- Cold drawn wire
