Vicalloy Wire Cold Drawn for Wiegand sensor diameter 0.50mm in stock

Vicalloy Wire Cold Drawn for Wiegand sensor diameter 0.50mm in stock

    • Vicalloy Wire Cold Drawn for Wiegand sensor diameter 0.50mm in stock
    • Vicalloy Wire Cold Drawn for Wiegand sensor diameter 0.50mm in stock
    • Vicalloy Wire Cold Drawn for Wiegand sensor diameter 0.50mm in stock
    • Vicalloy Wire Cold Drawn for Wiegand sensor diameter 0.50mm in stock
  • Vicalloy Wire Cold Drawn for Wiegand sensor diameter 0.50mm in stock

    Product Details:

    Place of Origin: Suzhou, China
    Brand Name: XUNSHI
    Certification: ISO, TUV, , BV, DNV
    Model Number: Vicalloy

    Payment & Shipping Terms:

    Minimum Order Quantity: 100meter
    Price: Available per request
    Packaging Details: By customers' require
    Delivery Time: 5 days
    Payment Terms: T/T
    Supply Ability: 100 kg/month
    Contact Now
    Detailed Product Description
    Material: FeCoV Alloy Diameter: 0.50mm
    Method Of Production: Cold Drawn Origin: China

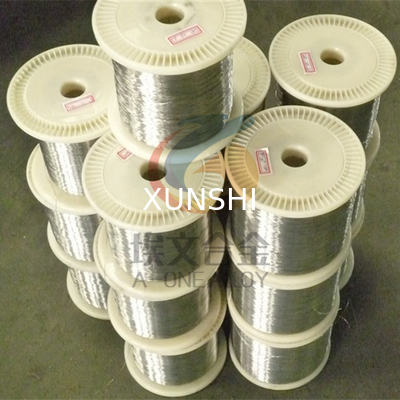

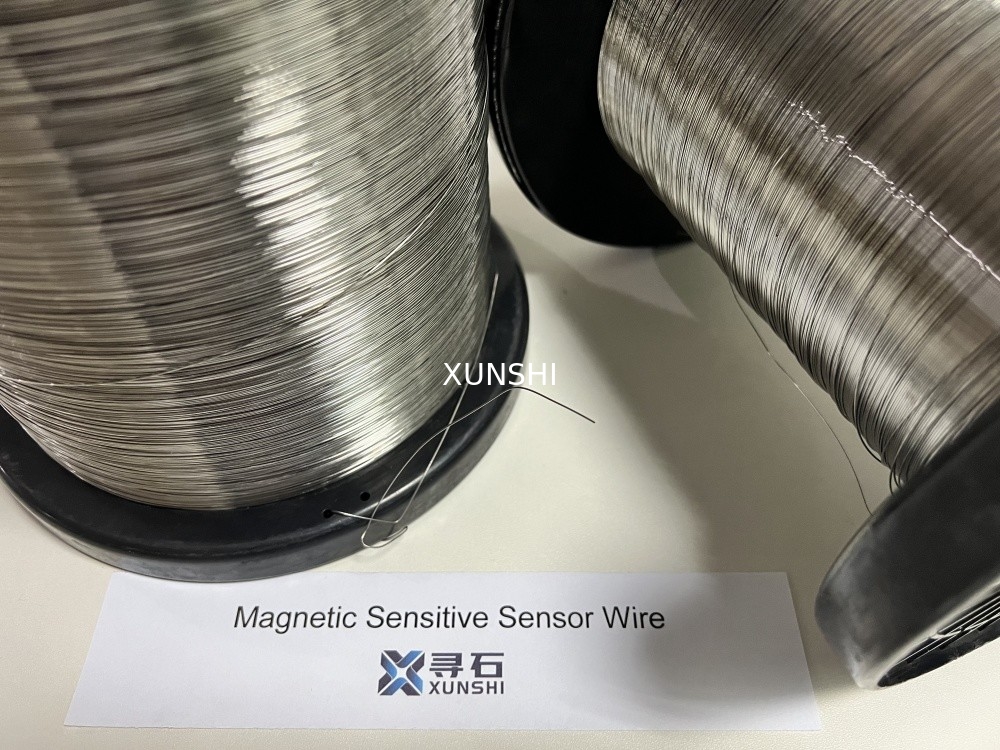

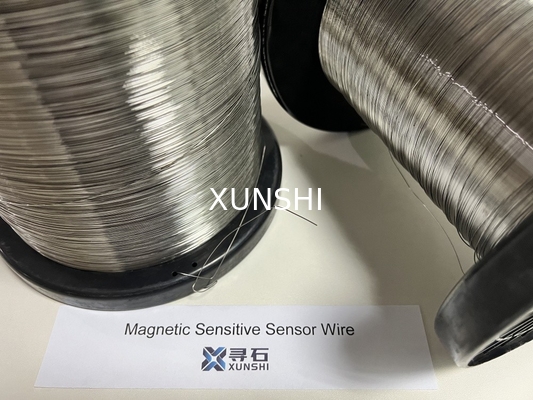

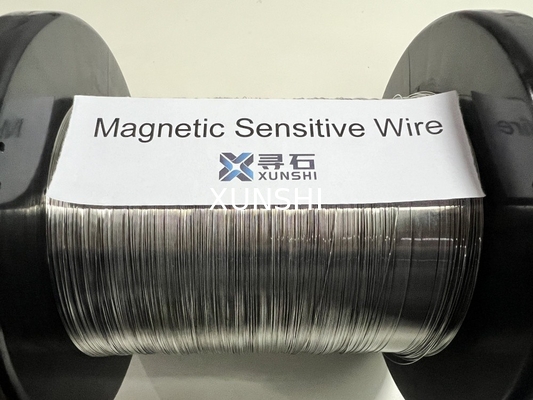

    Vicalloy Wire for Wiegand sensor

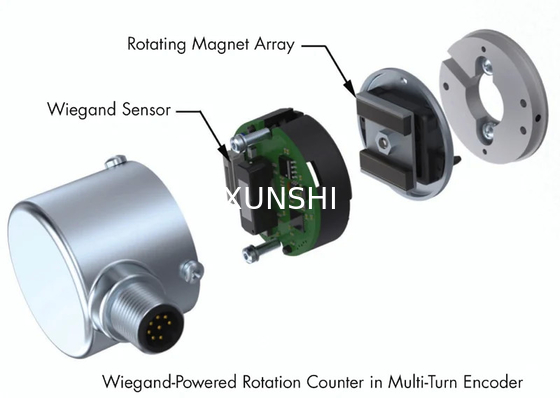

    Wiegand sensor alloy wire - Speciallyprocessed, ferromagnetic wire would generate a sharp uniform voltage pulse when passed through alternating magnetic fields created by small permanent magnets.This technology was adapted to sensors and the wire is so-called Wiegand wire.

    Wiegand wire is low-carbon Vicalloy, aferromagnetic alloy of cobalt, iron, and vanadium. Initially, the wire is fullyannealed. During manufacture, to give the wire its unique magnetic properties,it is subjected to a series of twisting and untwisting operations to cold-workthe outside shell of the wire while retaining a soft core within the wire, andthen the wire is aged. The result is that the magnetic coercivity of theoutside shell is much larger than that of the inner core. This high coercivityouter shell will retain an external magnetic field even when the field'soriginal source is removed.



    XUNSHI could supply high quality Vicalloy Wire for Wiegand sensor.

    Size available:

    Diameter: 0.50mm in stock

    Diameter 0.25mm available on request



    Minimum order quantity (MOQ): 100 meters.
