Vicalloy Ⅰ FeCoV Permanent Magnetic alloy electromechanical device applications

Vicalloy Ⅰ FeCoV Permanent Magnetic alloy electromechanical device applications

    • Vicalloy Ⅰ FeCoV Permanent Magnetic alloy electromechanical device applications
    • Vicalloy Ⅰ FeCoV Permanent Magnetic alloy electromechanical device applications
    • Vicalloy Ⅰ FeCoV Permanent Magnetic alloy electromechanical device applications
    • Vicalloy Ⅰ FeCoV Permanent Magnetic alloy electromechanical device applications
    • Vicalloy Ⅰ FeCoV Permanent Magnetic alloy electromechanical device applications
  • Vicalloy Ⅰ FeCoV Permanent Magnetic alloy electromechanical device applications

    Product Details:

    Place of Origin: Suzhou, China
    Brand Name: XUNSHI
    Certification: NA
    Model Number: SZAW-PMA-BAR

    Payment & Shipping Terms:

    Minimum Order Quantity: 20kg
    Price: USD150-250/kg, FOB Shanghai Port, China
    Packaging Details: Wooden crate
    Delivery Time: 30 days
    Payment Terms: T/T
    Supply Ability: 1000kg per week
    Contact Now
    Detailed Product Description
    Type: Permanent Shape: Bar
    Application: Industrial Magnet Composite: FeCoV

    Vicalloy I

    Introduction
    Vicalloy is a family of  cobalt-iron-vanadium wrought permanently magnetic alloys. Vicalloy is  precipitation hardened and can be formed by a number of cold working  techniques. It is commonly used in electromechanical device applications,  such as Wiegand wires because it shows a large Wiegand effect.

    Character
    • Precipitation hardenable
    • Has good ductile before the precipitation hardening heat  treatment
    • Good cold work performance
    • Good corrosion resistance.
    • After precipitation hardening the hardness is as high  as up to HRC60.

    Application
    Vicalloy Ⅰ has been used for  biasing magnets in meters and magnetic actuators, as magnetic coded devices,  field coils for DC motors and servos, and hysteresis motor laminations.  Special processed Vicalloy Ⅰ wire is used as Wiegand  wire because it shows a large Wiegand effect.

    Equal grade
    2J10 (China)

    Typical chemical  composition
    • C=0.03
    • Mn=0.40
    • Si=0.20
    • Co=52
    • V=10.00
    • Fe=remainder

    Standard
    Per XUNSHI spec

    Forms available  at A-one Alloy

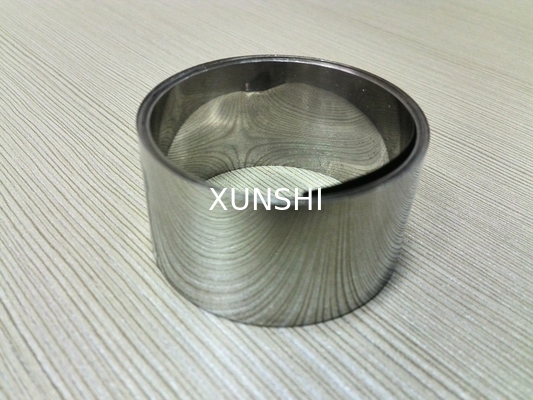

    Cold rolled strip
    Thickness: 0.05-1.0mm
    Width: 5-200mm

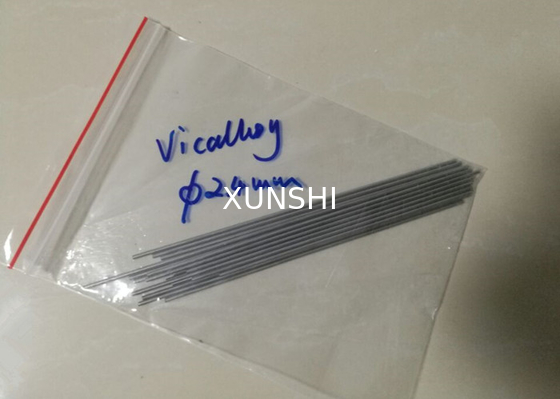

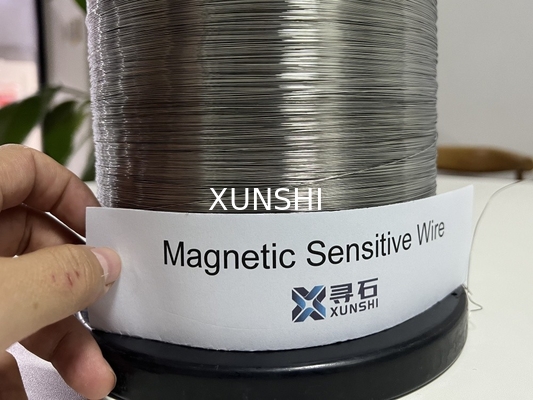

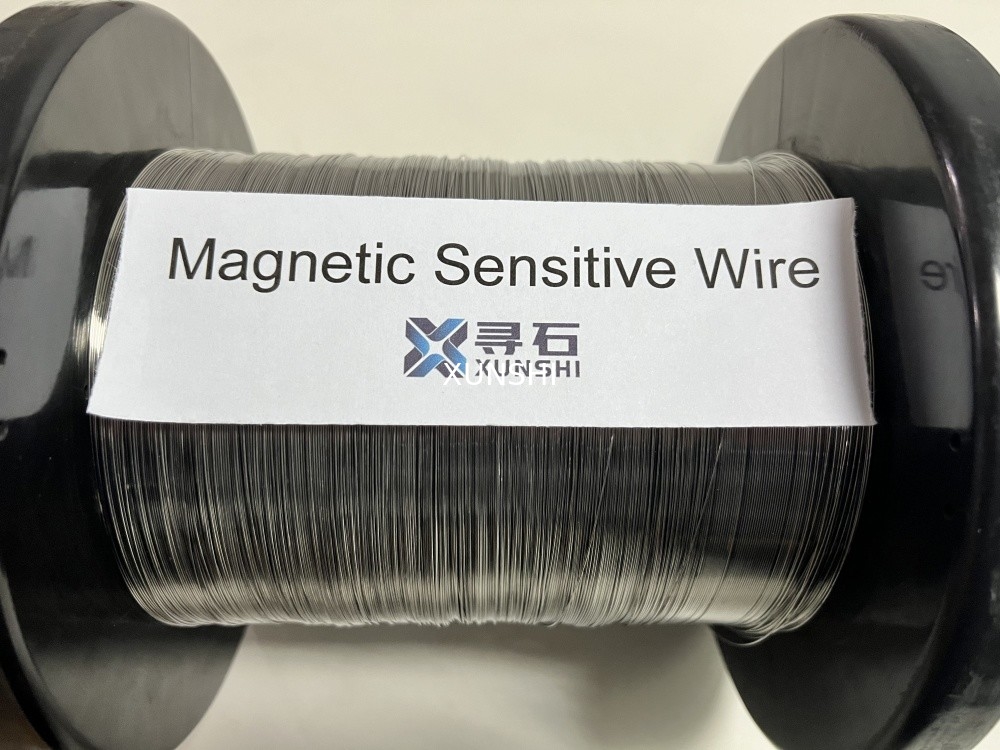

    Wire diameter: Φ0.1~6.0mm

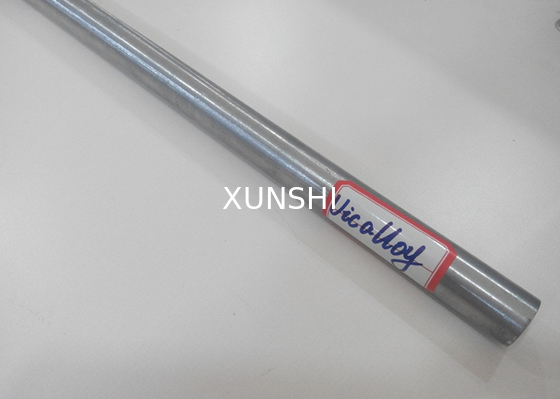

    Bar diameter: Φ5-200mm

    Delivery
    Strip of thickness 0.25mm/0.40mm in  stock
    Bar: 25 days
    Strip: 35 days
    Wire of diameter 0.50mm in stock
