P6 Permanent Magnetic Alloy A-one Alloy Professional Manufacturer
Introduction
P6 alloy is a cobalt base precipitation hardened alloy, similar to Vicalloy, which combines the advantages of high hysteresis loss and low magnetizing force into one material.
Density: 8.16g/cm3
Character
-
High hysteresis loss
-
Low magnetizing force
-
Highest efficiency (loss per unit magnetizing force) of any known material
Application
Ductile magnetic alloys have been used for biasing magnets in meters and magnetic actuators, as magnetic coded devices, field coils for DC motors and servos and hysteresis motor laminations.
Equal grade
2J4(China)
Typical chemical composition (%)
Ni=6.00, Co=45.00, V=4.80, Fe=Reminder
Standard
Per A-one Alloy company standard
Forms available at A-one Alloy

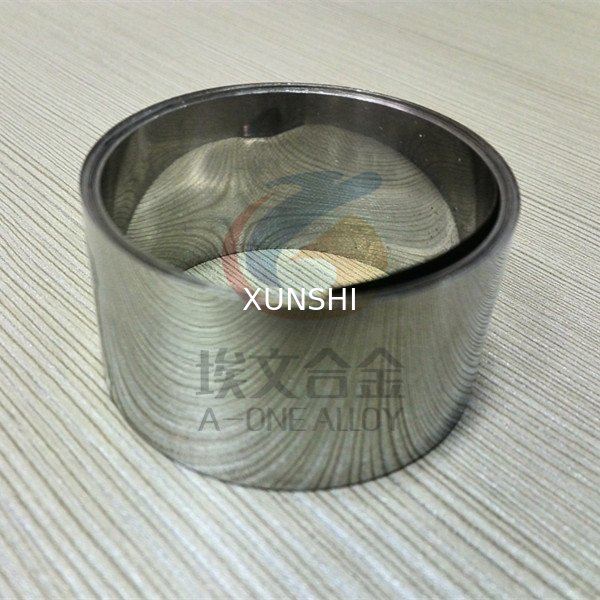

Cold rolled strip
-Thickness: 0.05-1.0mm
-Width: 5-200mm
Wire diameter: Φ0.1～6.0mm
Bar diameter: Φ5-200mm
Delivery
Strip of thickness 0.25mm/0.40mm in stock
Bar: 25 days
Strip: 35 days
Wire of diameter 0.30/0.50mm in stock
